Adjusting Exterior Side Mirrors
Press the button associated with the mirror
you want to adjust (left or right). The button

StartingWhen you open a door, Model S powers on
the instrument panel and touchscreen. The
instrument panel displays the status of doors
and the charge level, and you can operate all
controls.
To drive:

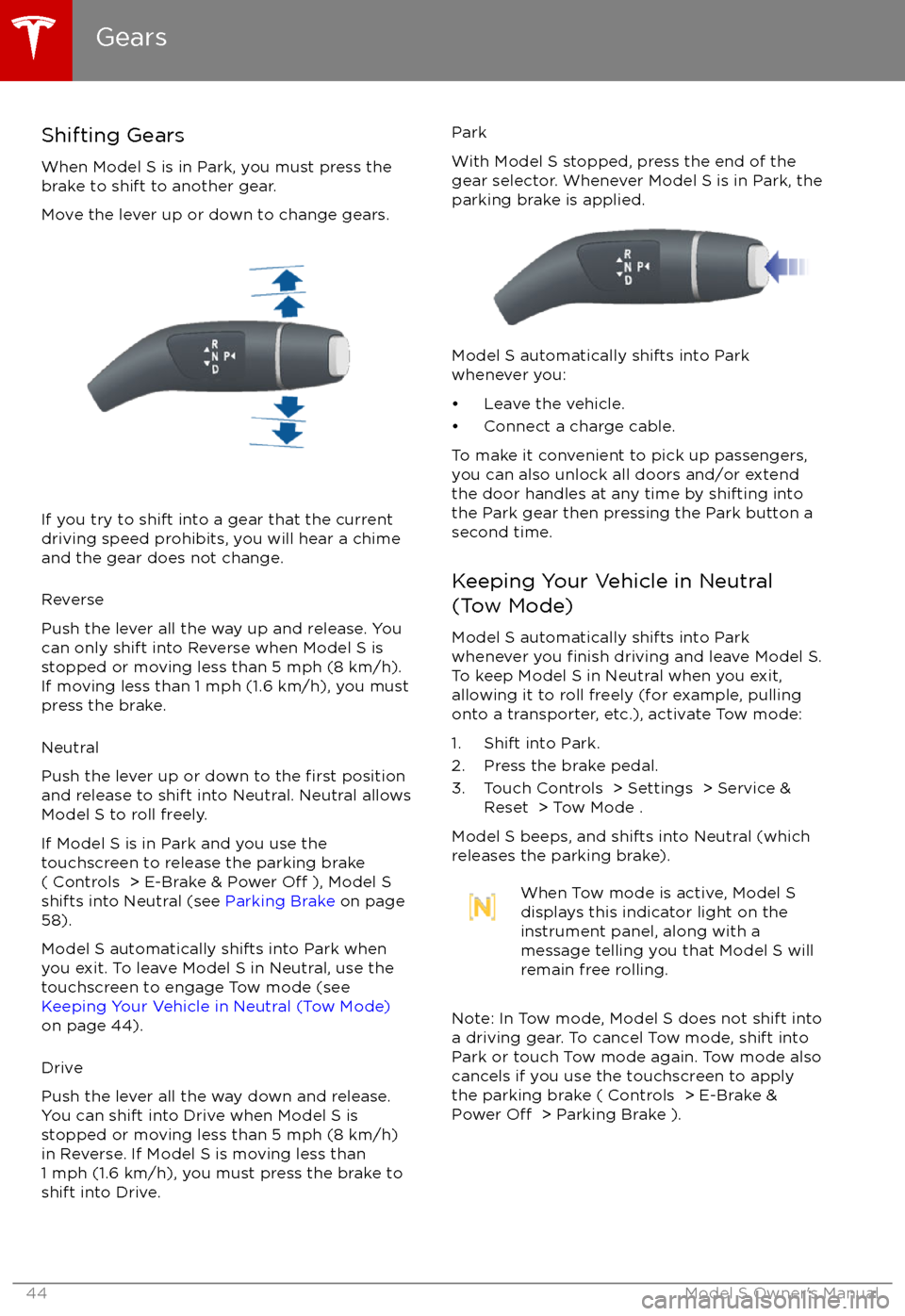

Shifting GearsWhen Model S is in Park, you must press the
brake to shift to another gear.
Move the lever up or down to change gears.
If you try to shift into a gear that the current
driving speed prohibits, you will hear a chime
and the gear does not change.
Reverse
Push the lever all the way up and release. You
can only shift into Reverse when Model S is
stopped or moving less than 5 mph (8 km/h).
If moving less than 1 mph (1.6 km/h), you must
press the brake.
Neutral
Push the lever up or down to the
first position
and release to shift into Neutral. Neutral allows
Model S to roll freely.
If Model S is in Park and you use the
touchscreen to release the parking brake
( Controls > E-Brake & Power
Off ), Model S
shifts into Neutral (see Parking Brake on page
58).
Model S automatically shifts into Park when
you exit. To leave Model S in Neutral, use the touchscreen to engage Tow mode (see
Keeping Your Vehicle in Neutral (Tow Mode)
on page 44).
Drive
Push the lever all the way down and release.
You can shift into Drive when Model S is stopped or moving less than 5 mph (8 km/h)in Reverse. If Model S is moving less than
1 mph (1.6 km/h), you must press the brake to shift into Drive.
Park
With Model S stopped, press the end of the
gear selector. Whenever Model S is in Park, the
parking brake is applied.
Model S automatically shifts into Park
whenever you:

Instrument Panel Overview
The instrument panel changes depending on whether Model S is:

IndicatorDescription
Parking lights (side marker lights, tail lights, and license plate lights) are on. See
Lights on page 51.Front fog lights (optional). See Lights on page 51.Rear fog lights. See Lights on page 51.Adaptive Front Lighting. See Adaptive Front Lighting System (AFS) on page 54.
Electronic stability control systems are actively minimizing wheel spin by
controlling brake pressure and motor power (indicator flashes). See Traction
Control on page 59. If this indicator stays illuminated, a fault is detected (contact
Tesla immediately).Smart Air Suspension

IndicatorDescription
An ABS (Anti-lock Braking System) fault is detected. See Brakes on page 57.
Contact Tesla immediately.The parking brake is manually applied. See Parking Brake on page 58.A parking brake fault is detected. Contact Tesla. See Parking Brake on page 58.Vehicle Hold is actively applying the brakes. See Vehicle Hold on page 62.Tire pressure warning. The pressure of a tire is out of range. If a fault with the Tire
Pressure Monitoring System (TPMS) is detected, the indicator flashes. For a TPMS
fault, contact Tesla. See Tire Care and Maintenance on page 139.A door or trunk is open. See Doors on page 4, Rear Trunk on page 10, or Front
Trunk on page 12.A seat belt for an occupied seat is not fastened. Note: Depending on the date of
manufacture, rear seating positions may not be equipped with a seat belt
reminder.See Seat Belts on page 19.The front passenger

IndicatorDescription
Model S is in Tow mode and can roll freely. It does not automatically shift into Park
when you exit. See Instructions for Transporters on page 173.Flashes green when the left turn signal is operating. Both turn signal indicatorsflash green when the hazard warning flashers are operating.Flashes green when the right turn signal is operating. Both turn signal indicatorsflash green when the hazard warning flashers are operating.Instrument Panel
48Model S Owner

Instrument Panel - DrivingWhen Model S is driving (or ready to drive), the instrument panel shows your current drivingstatus and a real-time visualization of the road as detected by Model S

8. Use the right steering wheel buttons to change what displays on the right side of theinstrument panel whenever a phone call is not active (see Using Right Steering Wheel Buttons
on page 40).
9. Total estimated driving distance (or energy) available. Instead of driving distance, you can display the percentage of battery energy remaining. To do so, touch Controls > Settings >Language & Units > Energy & Charging (see Settings on page 101).
Note: When anticipating when you need to charge, use range estimates as a general guideline only.
Note: In cold weather, some of the stored energy in the Battery may not be available on your drive because the Battery is too cold. When this happens, a portion of the Battery meter isblue and the driving distance value has a
snowflake image next to it. If Model S is plugged in,
you can heat your Battery using wall power by turning on climate control using the mobile app. When the Battery warms up, the blue portion on the meter and the
snowflake image are
no longer displayed.
10. The speed limit (if available) that is currently being detected by Speed Assist (see Speed
Assist on page 91).
11. The car in front of you (if applicable).
Note: In situations where Autosteer is unable to detect lane markings, the driving lane isdetermined based on the vehicle you are following. In these situations, the car in front of you
is highlighted in blue.
12. Pay attention to important driving-related messages that appear at the bottom center of the instrument panel.
13. Your Model S.
14. When Autosteer is active and detects the driving lane, it is highlighted in blue (see Autosteer
on page 76).
15. Currently selected gear: Park, Reverse, Neutral, or Drive.
Instrument Panel
50Model S Owner
